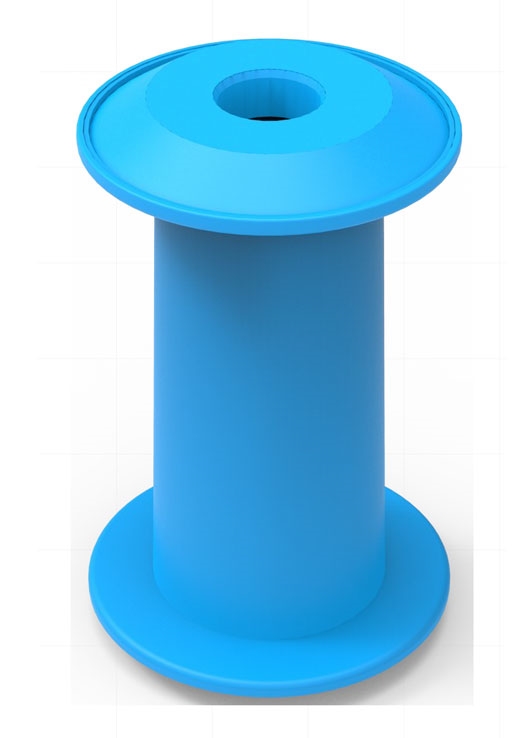

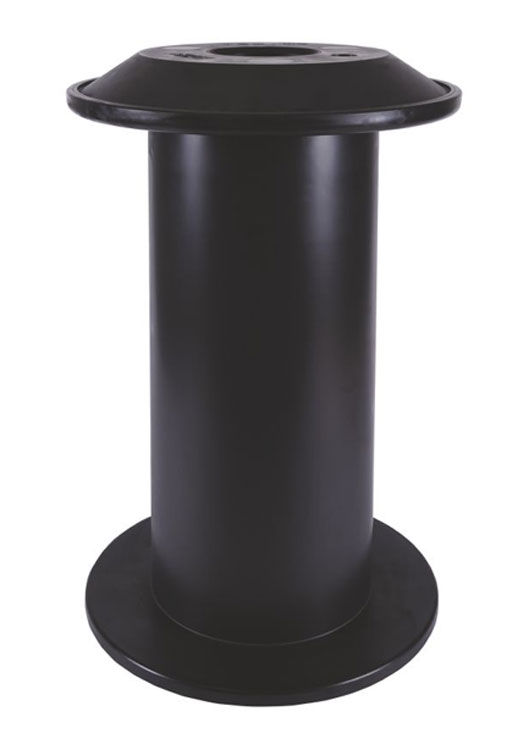

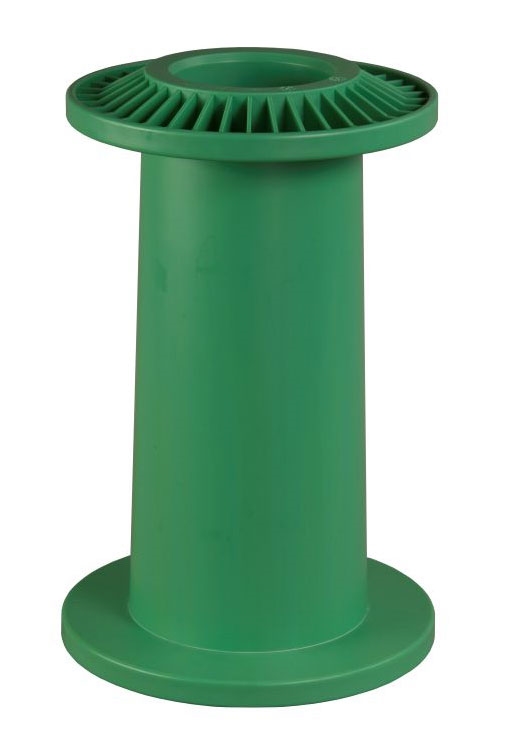

KONİK MAKARALAR (IEC 60264-3 / DIN 43383)

  • Raw Materials
    Recommended raw materials are HIPS or ABS. Different raw materials on request.
  • Colors
    All proper colors to these rawmaterials are avaliable.
  • Catalog

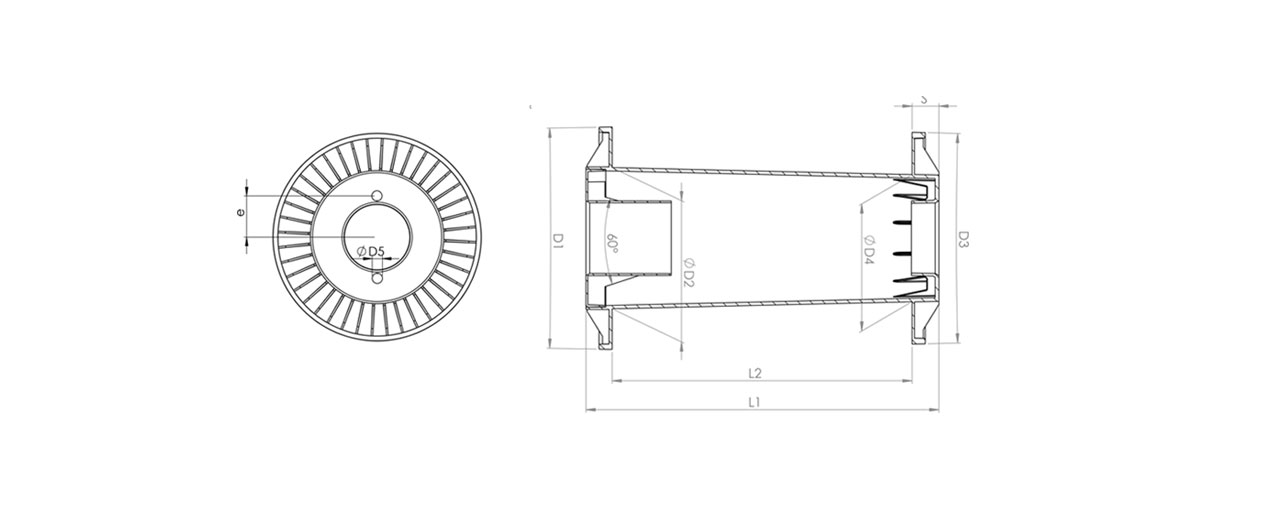

  • D1 Flange Diameter
  • D2 Barrel Diameter
  • D3 Bore Diameter
  • L1 Spool Length
  • L2 Winding Distance
  • S Flange Thickness
DIMENSION (mm)
Product Product Name D1 D2 D3 L1 L2 S Winding Distance
A 250/400 E - 1.500 gr.25016023640033532.545 kg. (cu wire capacity)
A 250/400 - 2.250 gr.25016023640033532.545 kg. (cu wire capacity)
A 315/500 E - 2.500 gr.31520030050042537.590 kg. (cu wire capacity)
A 315/500 - 4.350 gr.40020030050042537.590 kg. (cu wire capacity)
A 400/630 - 7.300 gr.40025037563053050190 kg. (cu wire capacity)
A 400/630 - 6.700 gr. 40025037563053050190 kg. (cu wire capacity)
PACKAGING
Product Product Name Quantity Gross Weight Dimensions Type of Packaging
A 250/400 E - 1.500 gr.150240105x125x220Pallet
A 250/400 - 2.250 gr.150150105x125x226Pallet
A 315/500 E - 2.500 gr.80220110x130x222Pallet
A 315/500 - 4.350 gr.80360110x130x222Pallet
A 400/630 - 7.300 gr.27210117x117x218Pallet
A 400/630 - 6.700 gr. 27195117x117x218Pallet
